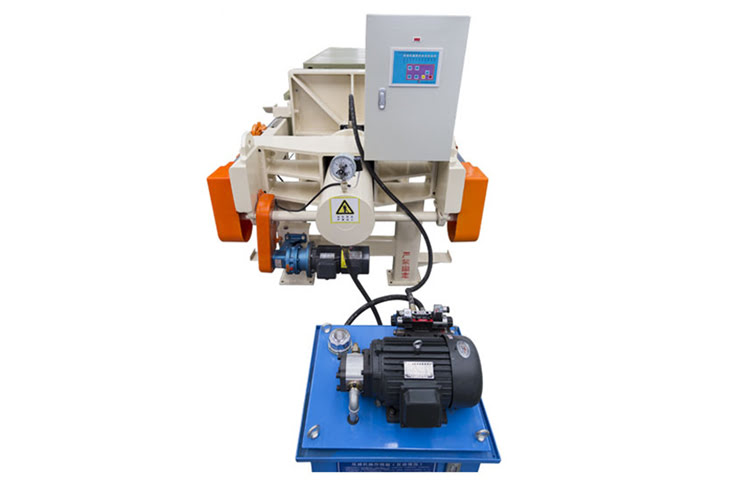

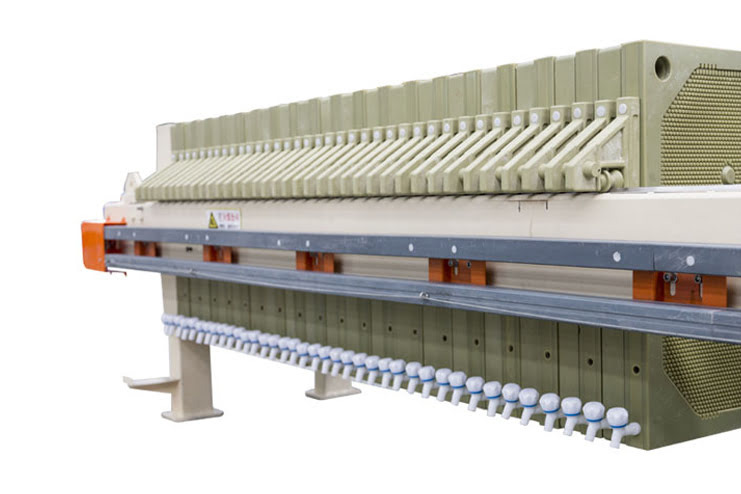

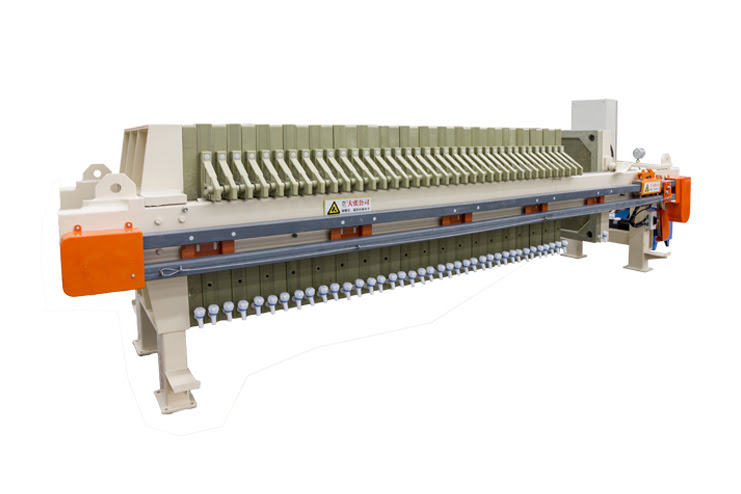

Membrane filter press
Variable filter chamber technology is widely used in solid-liquid separation applications invarious industries such as petrochemical, mining and metallurgy, food and medicine, coal washing.papermaking, pigment dyes, new energy lithium batteries, photovoltaics, fly ash desalination, etc.greatly improving production efficiency and reducing filter cake moisture content. The pressure levelis divided into conventional diaphragm pressing of 0.8-1.6Mpa, and ultra-high pressure diaphragmpressing can choose different pressure level equipment of 2.0-4.0Mpa to meet the needs of different working conditions.
The application of high-pressure dewatering technology in the municipal domestic sludgedewatering industry reduces the moisture content of the filter cake to the lowest level that meets thestandards for landfill and incineration (with municipal sludge achieving a moisture content of 35%-60%). Compared to traditional dewatering equipment, it achieves sludge reduction treatment.The dehydration system can achieve automated operation, and can be equipped with filter cakeauxiliary discharge system, filter cloth online flushing system, and automatic valve instrument, etc..which can achieve unmanned operation.
Our filter press can be made according to your specified order:
1.Plate Size：630x630mm to 2000x2500mm
2.Filtration area：1m2-1200m2
3.Chamber Depth: 10mm-60mm
4.Filtration pressure: up to 1.5 MPa
Membrane filter press is widely used in petroleum, chemical industry, pharmacy, sugar making, food, coal washing, grease, printing and dyeing, brewing, ceramics, mining metallurgy, sewage treatment and other fields.
-
Detail
Description
products Advantages
1. There are adopted Low pressure filtration and high pressure pressing, which are more efficient than traditional filter presses, greatly shortening the entire filtering cycle.
2. The independently developed high-strength PP filter plate is used, and the compression pressure can reach 22MPA.
3. Save the consumption of operating power. In the later stage of filtration, the flow is small and the pressure is high.
4. The working process of membrane pressing consumes very short time, saving power consumption.
5. Increase the density of cake and reduce the water content of cake. The membrane squeezes the filtered filter cake for the second time, so that the internal structure of the filter cake is rearranged and the density is increased, thus replacing part of the water, so that the water content is greatly reduced, the drying cost is saved, and the yield is increased.
6. It has strong corrosion resistance and is basically applicable to all solid-liquid separation operations.
7. It can be configured with PLC and human-computer interface control, and the operation procedure can be adjusted according to the on-site working conditions.
8. Membrane filter plate has good toughness, anti-aging and sealing performance to achieve the purpose of aseptic filtration. The user can also adjust the number of filter plates according to the size of the filter volume to meet the production needs.
9. High pressure dewatering technology is applied in the sludge dewatering industry. The water content of filter cake is reduced to meet the landfill and incineration standards (the water content in different industries varies). Compared with traditional dewatering equipment, the water content of filter cake is greatly reduced; The whole machine can realize fully automatic operation, and is equipped with online filter cloth flushing system and electric control valve instrument to realize unattended operation.
Technical Data
Model
Filtration area
(m²)
Plate size
(mm)
Cake thickness
(mm)
Filter chamber volume
(L)
Plate Qty.
(pcs.)
Motor power
(Kw)
Weight
(Kg)
Dimensions
L*W*H(mm)
G30/870-U 30 870*870 ≤35 498
23 2.2 3046
3880*1250*1300 G40/870-U 40 623
29 3593
4270*1250*1300 G50/870-U 50 789
37 4057
4790*1250*1300 G60/870-U 60 955
45 4597
5310*1250*1300 G70/870-U 70 1121
53 5136
5830*1250*1300 G80/870-U 80 1287
61 5636
6350*1250*1300 G50/1000-U 50 1000*1000 776
27 4 4352
4270*1500*1400 G60/1000-U 60 943
33 4480
4700*1500*1400 G70/1000-U 70 1109
39 5263
5130*1500*1400 G80/1000-U 80 1275
45 5719
5560*1500*1400 G100/1000-U 100 1608
57 6555
6410*1500*1400 G120/1000-U 120 1941 69 7466 7260*1500*1400 G80/1250-U 80 1250*1250 ≤40
1560
29 5.5 10900
4830*1800*1600 G100/1250-U 100 1975
37 11750
5440*1800*1600 G120/1250-U 120 2391
45 12600
6060*1800*1600 G150/1250-U 150 2911
55 13620
6820*1800*1600 G160/1250-U 160 3119
59 14470
7130*1800*1600 G200/1250-U 200 3847
73 15320
8200*1800*1600 G240/1250-U 240 4679
89 16170
9420*1800*1600 G250/1250-U 250 4783 91 17020 9570*1800*1600 G200/1500-U 200 1500*1500 3809
49 11 26120
7140*2200*1820 G250/1500-U 250 4723
61 26930
7730*2200*1820 G300/1500-U 300 5637
73 28160
8720*2200*1820 G350/1500-U 350 6551
85 29600
10110*2200*1820 G400/1500-U 400 7618
99 31500
11260*2200*1820 G450/1500-U 450 8532
111 33400
12250*2200*1820 G500/1500-U 500 9446 123 33380 13240*2200*1820 G600/2000-U 600 2000*2000 11901
85 15 54164
13030*3000*2500 G700/2000-U 700 13838
99 58300
14390*3000*2500 G800/2000-U 800 14945
107 62460
15770*3000*2500 G900/2000-U 900 17713
127 66620
17150*3000*2500 G1000/2000-U 1000 19651 141 70780 18530*3000*2500 -
